Custom Multi-Joint Damping LED Swing Arm Lab Desk Lamp ODM

Project Background & Customer Requirements

Laboratory precision operation, industrial tool inspection and professional desktop work scenarios require high-standard auxiliary lighting equipment. Ordinary civilian desk lamps have insufficient color rendering, single light mode, poor heat dissipation, and unstable cantilever structure, which cannot meet long-term high-precision observation and long-hour continuous lighting needs of laboratories and industrial workbenches.

The customer customized a multi-joint damping metal swing arm circular LED desk lamp for professional laboratory and tool table scenarios. The product needs to support multi-scene clamping and installation, stepless dimming and multi-color temperature adjustment, intelligent memory and human body induction timing functions. Meanwhile, it requires ultra-high color rendering optical performance, stable heat dissipation system and durable damping cantilever structure to achieve long-term stable suspension positioning and fatigue-resistant use. Bailu Technology undertook the full-process ODM customized development from optical scheme design, electronic hardware development, structural difficulty breakthrough to prototype verification and performance testing.

Overall Design Scheme & Technical Idea

Aiming at the professional lighting demands of laboratory and industrial desktop scenarios, we completed systematic customized development covering optical scheme, electronic hardware scheme and mechanical structure scheme, realizing high color rendering intelligence, stable heat dissipation and flexible mechanical adjustment of professional-grade desk lamps.

1. Professional Optical Design Scheme

Focusing on laboratory high-precision observation and detail detection scenarios, we built a high-quality full-spectrum optical system to solve color difference, glare and light attenuation problems of ordinary lamps:

- High-standard LED Chip Selection: Adopt full-spectrum high color rendering LED chips, achieve Ra≥95 high color rendering index and RG0 low blue light grade, truly restore object true color, effectively reduce visual fatigue, and meet professional laboratory lighting standards.

- Optimized Optical Structure: Equipped with high-transmittance diffusion plate, scientifically control light output angle and uniform illumination range, eliminate local dark areas and glare, realizing soft and uniform whole-panel outgoing light.

- Precise Heat Dissipation Prediction: Calculate LED power consumption accurately, match customized aluminum substrate heat dissipation structure, effectively solve light attenuation and color temperature drift caused by long-term high-temperature operation, and ensure long-term stable light output consistency.

2. Intelligent Electronic Hardware Scheme

Adopt mature and stable isolated power supply + MCU main control solution to realize multi-functional intelligent control, meeting intelligent and humanized use needs of professional scenarios:

- Safety Power Supply System: Equipped with UL-certified AC-DC isolated power adapter, with over-current, over-voltage and short-circuit protection, stable power supply and high safety factor, suitable for long-term continuous operation in laboratory environments.

- MCU Intelligent Main Control: Single-chip microcomputer realizes core intelligent functions, including 3000K warm light to 5000K neutral light multi-color temperature switching, stepless dimming, brightness memory and human body induction timing switch. The lamp can automatically memorize the brightness and color temperature state before shutdown, and support intelligent induction delay control, which is energy-saving and convenient.

3. Mechanical Structure Scheme (Core Damping Cantilever Breakthrough)

The whole machine is divided into three core components: clamping base assembly, multi-section damping swing arm and lamp head assembly. Aiming at the industry difficulty of swing arm sagging and loose positioning after long-term use, we completed targeted structural optimization:

- Anti-scratch Clamping Base: Adopt screw clamping structure, built-in silicone soft cushion. It can be firmly fixed on ordinary desktops and tool tables without scratching the installation surface, realizing free switching of various installation scenarios with strong versatility.

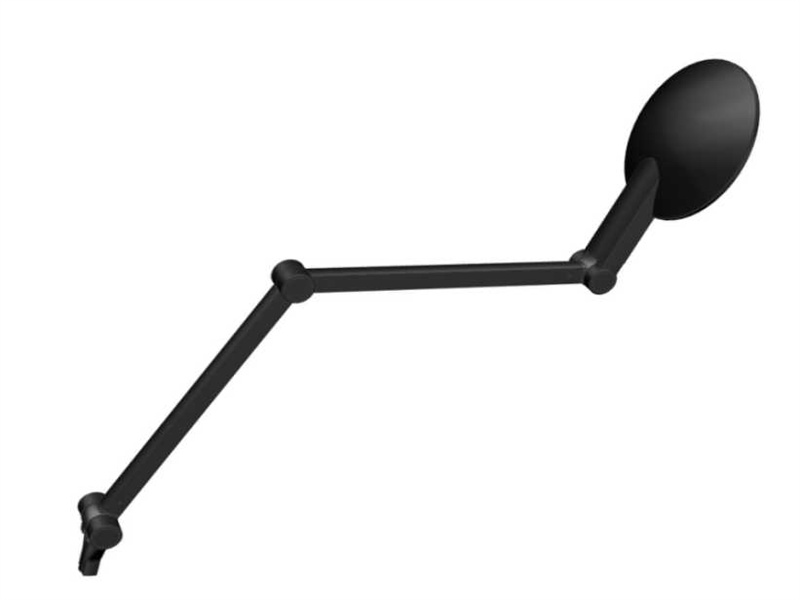

- Lightweight & Rigid Alloy Swing Arm: The arm rod is made of high-strength aluminum alloy profile, which reduces overall weight while ensuring structural rigidity, avoiding structural deformation and shaking during adjustment.

- Core Damping Rotating Shaft: Adopt high-precision friction damping structure, which is the key to realize arbitrary suspension of the long arm. It can stably lock the angle after adjustment, effectively solving the pain points of loosening, sliding and sagging of traditional swing arms after long-term use. The shaft undergoes strict fatigue testing to ensure long-term adjustment stability.

- Integrated Heat Dissipation Lamp Head: The lamp head integrates aluminum substrate heat dissipation, diffusion plate uniform light and protective shell structure, with compact layout, good heat dissipation performance and stable overall sealing.

DFMEA Risk Analysis & Optimization Countermeasures

- Light Attenuation & Color Temperature Drift Risk: Optimize aluminum substrate heat dissipation layout, accurately calculate power consumption, avoid local high temperature, and ensure long-term consistent light color and brightness.

- Swing Arm Loosening & Sagging Risk: Upgrade friction damping structure, standardize shaft assembly precision, and pass long-term fatigue tests to maintain stable damping force.

- Desktop Scratch & Unstable Clamping Risk: Add silicone anti-slip and anti-scratch cushion to the clamping base to improve fitting friction and protect the installation surface.

- Intelligent Control Failure Risk: Optimize MCU program logic, increase power-off memory and anti-interference design to ensure stable touch control and induction timing functions.

- Glare & Uneven Illumination Risk: Optimize diffusion plate optical angle and light distribution structure to realize uniform and soft outgoing light.

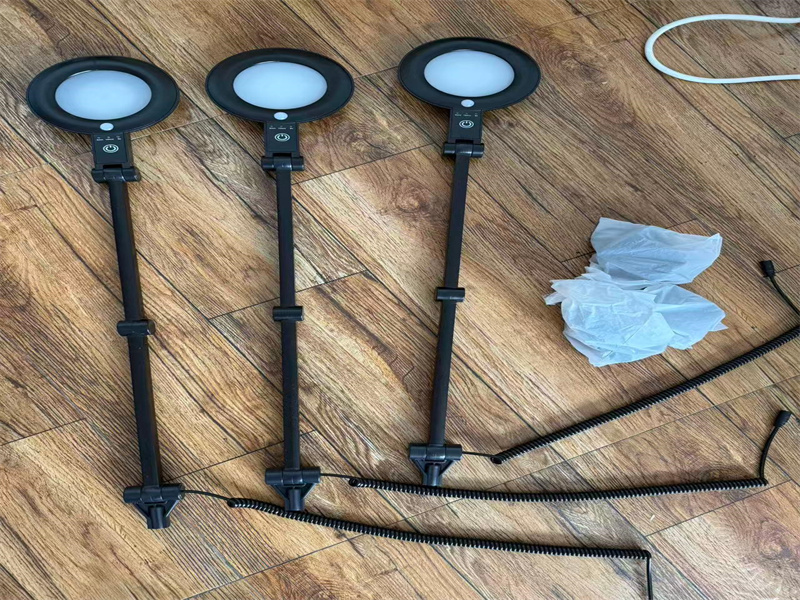

Prototype Verification & Professional Performance Testing

After structural prototyping, hardware commissioning and assembly fitting, we completed multiple professional performance verifications for laboratory scenario standards, and all indicators met design requirements:

- Illuminance & Optical Performance Test: Verify overall illumination range, uniformity and color rendering index, ensure Ra≥95 high color rendering, no glare, meet professional laboratory lighting standards.

- Temperature Rise & Heat Dissipation Test: Conduct long-term continuous lighting temperature rise test, verify aluminum substrate heat dissipation efficiency, effectively control working temperature, and avoid light attenuation and component aging.

- Damping Shaft Fatigue Test: Simulate long-term frequent angle adjustment, verify the stability of damping force of the rotating shaft, no sagging, no loosening, and durable positioning.

- Intelligent Function Debugging: Verify stepless dimming, multi-color temperature switching, brightness memory and human body induction timing functions to ensure sensitive and stable control.

- Scene Adaptability Test: Complete multi-table clamping installation test to verify firm clamping and wide scene adaptability.

Project Achievements & ODM Strength

This customized laboratory multi-joint damping LED desk lamp perfectly solves the shortcomings of ordinary lighting equipment such as low color rendering, unstable heat dissipation and easy sagging of swing arms. It achieves high color rendering professional optics, intelligent humanized control, stable damping mechanical structure and multi-scene flexible installation, fully meeting the long-hour and high-precision lighting needs of laboratories, industrial tooling workshops and professional desktop scenarios.

This project fully demonstratesBL’s full-chain ODM customization capabilities:optical scheme design, electronic hardware development, mechanical structure difficulty breakthrough, prototype manufacturing and professional performance testing. We support personalized customization of lamp structure, optical parameters, intelligent functions and appearance colors for professional lighting equipment brands, providing one-stop customized manufacturing solutions.
